Leadshine R3
IO Expansion Modules

  • Flexible expansion modules
  • Digital and analog IO
  • EtherCAT, Profinet, Ethernet IP Coupler
Leadshine R3 IO modules

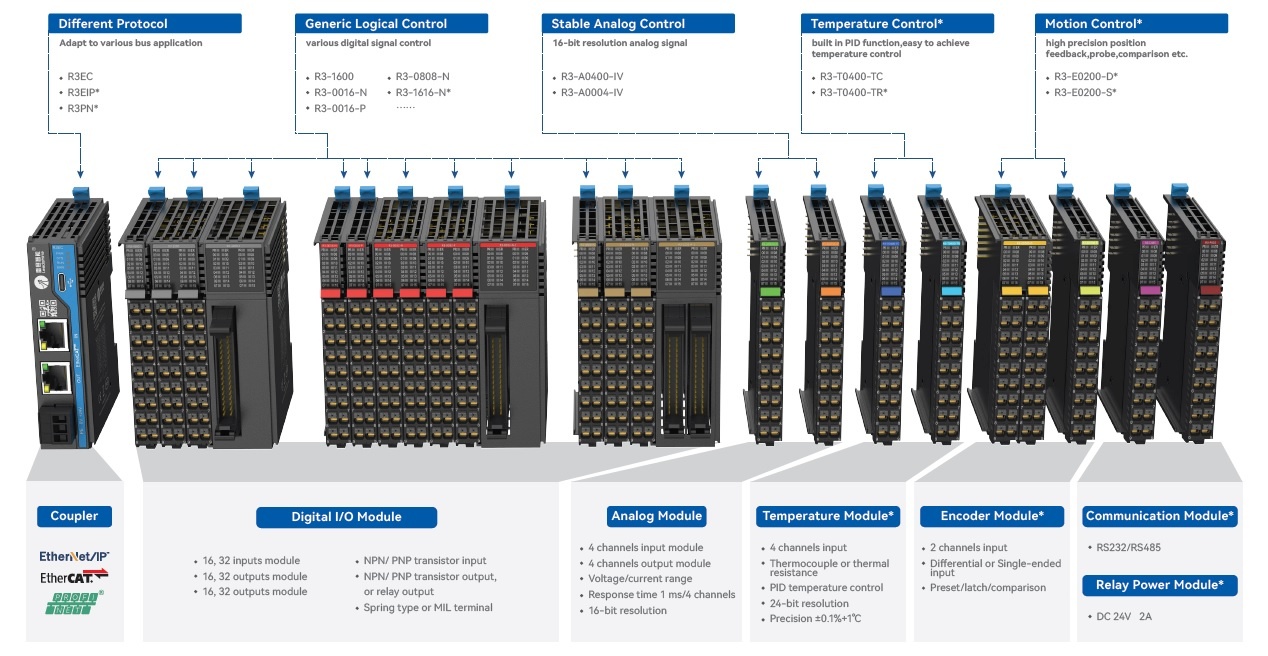

Leadshine R3 IO overview

Very compact IO modules, only 12 mm wide, suitable for any controller using EtherCAT, Profinet, or EthernetIP Coupler.

Various expansion modules:

  • 16 digital inputs NPN/PNP (R-1600)
  • 16 digital outputs NPN (R3-0016-N)
  • 16 digital outputs PNP (R3-0016-P)
  • 8 digital inputs (NPN/PNP) and 8 digital outputs NPN (R3-0808-N)
  • 4 analog inputs (R3-A0400-IV)
  • 4 analog outputs (R3-A0004-IV)
  • 4 temperature inputs/thermocouple (R3-T0400-TC)
  • 4 temperature inputs/thermoresistance (R3-T0400-TR)
  • 2-channel serial communication module (RS232/485/422) (R3-RS02-COM)
