CCM TX-serie
Linear and rotating cylinder

  • Toothed belt / PU3M - linear and rotation
  • Width profile 40 mm
  • Max. stroke 400 mm / load 3-5kg
CCM TX40

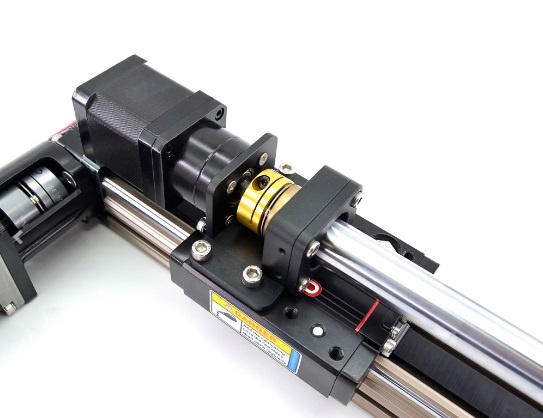

CCM TX40 detail

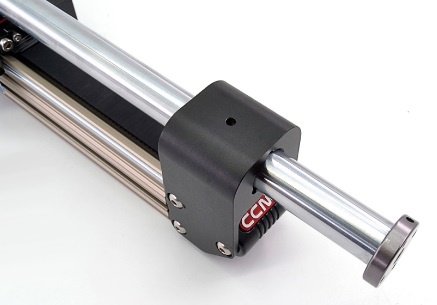

CCM TX40 detail2
CCM TX40 detail3
CCM XYZ-phi TX2

Compact and practical actuator for a combination of linear and rotational movement.

Linear movement

Linear movement is carried out with a unit W40-10 provided with a rotating rod with pressure surface (4 x M4 on a pitch circle ø 24 mm)

  • Stroke length: 70-320 mm
  • Timing belt pulley: HTD3M-25Z with circumference 75 mm
  • Timing belt: PU-3M-15 (STD)
  • Maximum load horizontal: 5 kg / vertical: 3 kg
  • Maximum linear speed: 1.5 m / s
  • Maximum input torque: 3.5 Nm with a Nema23 stepper motor or 400W servo motor

Rotation movement:

  • Nema 17 stepper motor with planetary gearbox (i = 5)
  • Maximum outgoing speed: 80 rpm Maximum outgoing torque: 2.0 Nm

CCM TX40
