2D and 3D positioning systems

  • XY, XZ and XYZ systems
  • Assembly of CCM linear units
  • Flexible and modular structure
CCM XY Gantry2
CCM XY Gantry

2D and 3D positioning systems, easy to assemble modularly

CCM supplies XY, XZ and XYZ systems built from linear axes (W-series) with standard accessories. This makes it easy to design and deliver a system quickly.

Standardization means savings in:

  • development time
  • costs standard components

The systems are very easy to build using standard accessories such as:

  • adapters and coupling for assembly of step and servomotors
  • timing belt reductions for assembly motors
  • adapters for assembling the CCM linear axes on eachother
  • limit switches

Dowload the complete list of all accesories

Vertical movement and rotation

For vertical displacement and / or rotation of an object or for a push function, assembled actuators are available as a standard:

  • T40: displacement or pushing force up to 3 kg

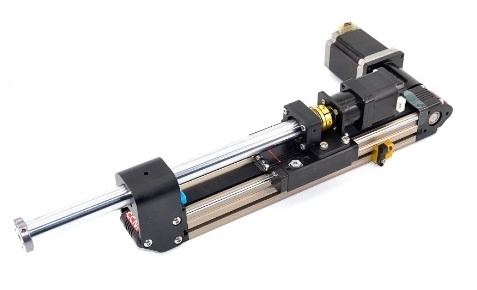

  • TX40: linear displacement and rotation

Both can easily be mounted on an X or XZ system with standard adapters


Total solutions at ATB Automation

ATB Automation delivers partial or total solutions composed of:

Programming and commissioning of the controllers and motion controllers can also be handled by ATB Automation.

Applications for CCM 2D and 3D positioning systems

  • Pick-and-place

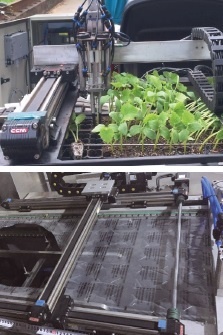

  • Agricultural automation
  • 3D printing
  • Assembly of electronics
  • Intelligent warehouse storage
  • Plasma cleaning and cutting
  • Glue dispensing
  • Packaging machines
  • Laser machines


Multi-axis positioning systems

Quotations and stepfiles can be easily requested via

  • Quick response, short lines
  • Renowned manufacturers
  • Profound product knowledge
  • High reliability

We supply slewing ring bearings, oscillating mountings, tensioner devices from stock and we also have spiral bevel gearboxes, servo gears and electromechanical actuators in our delivery program.

In addition we also select and offer the right components and systems for motion control solutions, such as servo gear motors, linear servo actuators and complete XYZ cartesian systems.
